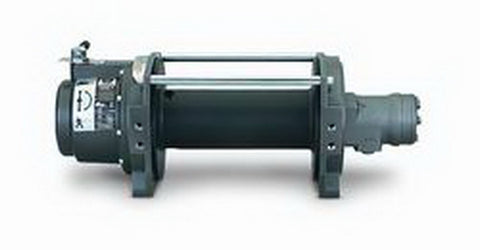

Series 9 DC - Industrial Winch - 9000 lb.- 24V DC Motor

PART NUMBER 30284

  • $ 1,808.63

Call for Availability
1 (800) 374-8028


Industrial Grade Winch Pulls up to 9,000 lb.
  • Dependable high-torque series-wound electric motor, available in 12 or 24V configurations
  • SAE J706-compliant disc brake designed for extended power-out use
  • Rugged 32' (10 m) industrial remote control
  • Higher gear ratio for fastest line speed
  • Weatherproof industrial contactor control pack
  • Thermal protection device protects motor from overheating
  • Wire rope, roller fairlead, and tensioner sold separately



PN 30283 12V
PN 30284 24V
9 DC SPECS/PART NUMBERS
Part Number: 30283 12V
Part Number: 30284 24V
Rated Pulling Force: 9000 lbs (4082kg)
Drum Barrel Diameter: 4.0" (102mm)
Drum Flange Diameter: 8.24 in (209mm)
Distance Between Flanges: 9.95" (253mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 15,100 lbf (6849 kgf)
Approximate Shipping Weight: 95.0 lbs (43.1 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 75 ft (22.9 m)
Mounting Bolt Torque: 35 - 40 ft*lbf (47 - 54 N*m)
Maximum Layers of Wire Rope: 4 (with 3/8" rope)
Gear Reduction: 199:1
Brake Type: Disk
Contactor / Remote Type: Industrial contactor with 33' (10m) heavy duty remote
Standard Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ACCESSORIES
Wire Rope Tension Plate 10'': PN 31149
Fairlead Black 10'': PN 24336
Fairlead Chrome 10'': PN 30859
Remote Clutch Mechanical: PN 38316
Remote Clutch Air: PN 71370
Wire Rope Assembly 3/8''x125' EIPS: PN 23674

12V PERFORMANCE DATA BY LAYER - 3/8" (9.5 mm) dia. rope
Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 9000 4082 40.0 26.0 7.9 25 7.6
2 7518 3410 33.4 31.1 9.5 54 16.5
3 6455 2928 28.7 36.3 11.1 88 26.8
4 5655 2565 25.2 41.4 12.6 126 38.4

* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.


12V FIRST LAYER PERFORMANCE
Line Load Current Draw Line Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 101.0 26.0 7.9 4.1
1500 680 169.1 17.2 5.2 2.1
3000 1361 233.0 12.8 3.9 1.4
4500 2041 296.9 9.5 2.9 1.1
6000 2722 362.9 5.5 1.7 0.9
7500 3402 424.7 5.2 1.6 0.7
9000 4082 486.0 2.9 0.9 0.6


24V PERFORMANCE DATA BY LAYER - 3/8" (9.5 mm) dia. rope
Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 9000 4082 40.0 31.3 9.5 25 7.6
2 7518 3410 33.4 37.4 11.4 54 16.5
3 6455 2928 28.7 43.6 13.3 88 26.8
4 5655 2565 25.2 49.8 15.2 126 38.4

* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.


24V FIRST LAYER PERFORMANCE
Line Load Current Draw Line Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 54.5 31.3 9.5 4.8
1500 680 91.9 19.7 6.0 2.4
3000 1361 120.2 15.3 4.7 1.7
4500 2041 150.4 12.6 3.8 1.3
6000 2722 185.5 10.4 3.2 1.0
7500 3402 215.9 8.9 2.7 0.9
9000 4082 237.9 8.1 2.5 0.8

Series 9 DC 24V Product Datasheet
