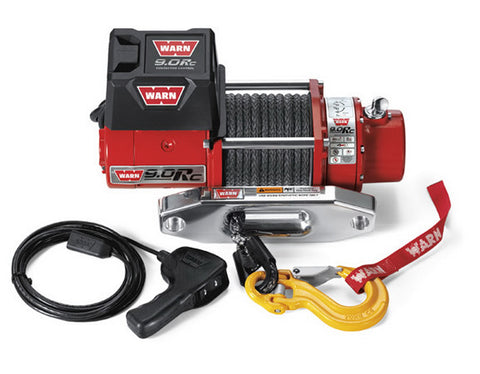

9.0Rc Warn Rock Crawler Winch, 9,000lb.-W/Synthetic Rope

PART NUMBER 71550

$ 2,289.99

Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That's why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.

4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
Next-generation control pack delivers long duty cycles
New-style remote control
50' of 3/8" (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
Aluminum hawse fairlead
Exclusive multi-segment cam actuated brake for positive operator control during winching
Gloss red paint with primer undercoat gives superior corrosion resistance

9.0Rc SPECS/PART NUMBER

Winch Model: WARN 9.0Rc

Part Number: 71550

Rated Line Pull: 9,000 lbs. (4080 kgs) single-line

Motor: Series Wound, 12V 4.8 hp

Electrical controls: Contactor

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 216:1

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic mechanical cone brake

Drum diameter/Length: 2.75 in/4.75 in (7.0cm/12cm)

Weight: 54 lbs. (24.8kgs.)

Rope: 50 ft, 3/8 in (15m, 9.5mm) Spydura™ synthetic Rope

Fairlead: Polished Aluminum Hawse

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72 in (1.83m)

Finish: Gloss red paint over primer undercoating

PERFORMANCE SPECIFICATIONS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	32 (9.75)	85 amps	1/9000 (4082)
2000	16 (4.88)	187 amps	2/7280 (3302)
4000	11.4 (3.47)	284 amps	3/6670 (3026)
6000	8.9 (2.71)	367 amps	4/6230 (2826)
8000	6.8 (2.07)	458 amps
9000	5.6 (1.70)	408 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 16.8" L. x 6.3" D. x 7.6" H. (427mm L. x 160mm D. x 194mm H.)

Mounting Bolt Pattern: 6" x 4.5" (151mm x 114.3mm)
