Series 15 DC - Industrial Winch - 15000 lb. - 12V DC Motor

PART NUMBER 66032

  • $ 2,010.14


WARN Series 15 Tow Truck and Industrial DC Electric Winches

The WARN Series 15DC Tow Truck and Industrial Electric Winches come in 12V or 24V configurations that can pull up to 15,000 lbs. They are extremely dependable, consisting of a high torque, series wound electric motor that is available in both the 12V and 24V configurations. The industrial contactor control pack in the WARN Series 15DC winch is completely weatherproof, and it contains a rugged 32' (10m) industrial remote control to stand up to the toughest towing situations. The WARN Series 15DC disc brakes were designed with extended power out use in mind, as well as implementing thermal protection devices to protect the Series 15DC Winch motor from overheating.

WARN Series 15 DC Specs/Part Numbers

Part Number:  66032 12V
Part Number:  65932 24V
Rated Pulling Force:  15000 lbf (6804 kg)

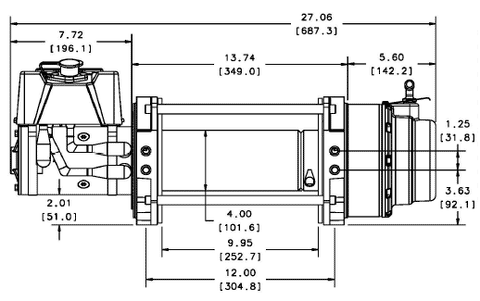

Drum Barrel Diameter:  4.0" (102 mm)
Drum Flange Diameter:  8.24" (209 mm)
Distance Between Flanges:  9.95" (253 mm)
Recommended Maximum Wire Rope Diameter:  1/2" (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength:  26600 lbf (12066 kgf)
Approximate Shipping Weight - 66032:  106.0 lb (48.1 kg)
Approximate Shipping Weight - 65932:  104.0 lb (47.2 kg)
Duty Cycle (intermittent per SAE J706 section 6.2):  55' (16.8 m)
Mounting Bolt Torque:  35-40 ft*lbf (47-54 N*m)
Maximum Layers Of Wire Rope:  3 (with 1/2" diameter rope)
Gear Reduction: 315:1
Brake Type:  Disk
Contactor / Remote Type:  Industrial contactor with 33' (10m) heavy duty remote
Standards Compliance - 66032:  SAE J706
Standards Compliance - 65932:
SAE J706
CE Hawse Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC

WARN Series 15 DC Accessories

Wire Rope Tension Plate 10":  PN 31149
Fairlead Black 10":  PN 24336
Fairlead Chrome 10":  PN 30859
Remote Clutch Mechanical:  PN 38316
Remote Clutch Air:  PN 71370
Wire Rope Assembly 1/2" x 75':  PN 77534

12V PERFORMANCE DATA BY LAYER - 1/2" (12.7 mm) Diameter Rope

Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 15000 6804 66.7 16.1 4.9 20 6.1
2 12272 5566 54.6 19.6 6.0 45 13.7
3 10384 4710 46.2 23.2 7.1 75 22.9

* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.

12 V First Layer Performance

Line Load Current Draw Line Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 111.0 16.1 4.9 6.2
3000 1361 216.0 13.0 4.0 2.3
6000 2722 302.0 9.6 2.9 1.4
9000 4082 390.0 8.0 2.4 1.1
12000 5443 477.0 6.0 1.8 1.0
15000 6804 561.0 5.2 1.6 0.8

24 V Performance Data By Layer - 1/2" (12.7 mm) Diameter Rope

Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 15000 6804 66.7 15.4 4.7 20 6.1
2 12273 5567 54.6 18.9 5.8 45 13.7
3 10385 4711 46.2 22.3 6.8 75 22.9

* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.


24V FIRST LAYER PERFORMANCE
Line Load Current Draw Line Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 49.7 15.4 4.7 5.5
3000 1361 101.0 12.6 3.8 2.1
6000 2722 141.0 9.8 3.0 1.4
9000 4082 181.0 8.0 2.4 1.1
12000 5443 214.0 6.5 2.0 0.9
15000 6804 264.0 5.5 1.7 0.8

Series 15 DC 12V Product Datasheet
