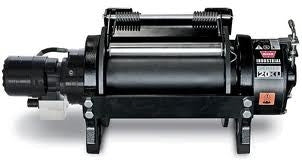

Series 20 XL LP, Long Drum, Air Clutch - Pressure below 3000psi

Series 20 XL LP, Long Drum, Air Clutch - Pressure below 3000psi

PART NUMBER 79210

  • $ 4,199.43

Call for Availability
1 (800) 374-8028


Great for Wreckers, Trailers, or Severe-Duty Applications
This winch has a 20,000 lb. pulling capacity and is designed for use on trailers, rollback trailers, and heavy-duty applications. LP stands for "Low Pressure" and means this winch uses a larger displacement motor to pull full rated load at only 2200 psi. This makes the Series 20XL-LP winch ideal for hydraulic systems that operate below 3000 psi.

  • 11.9 cubic-inch high-performance motor with 20,000 lb. capacity - great for wreckers, trailers, or severe duty applications
  • Spring-applied disc brake designed to hold the full-rated load
  • Hardened aircraft-grade nickel chromoly two stage planetary geartrain for speed and reliability
  • Standard air clutch with manual clutch option
  • Available in short- and long-drum versions
  • Meets SAE J706 and CE specifications
PN 78970 (Standard Drum, Air Clutch)
PN 78980 (Standard Drum, Manual Clutch)
PN 79210 (Long Drum, Air Clutch)
PN 79220 (Long Drum, Manual Clutch)


20XL-LP HYD SPECS/PART NUMBERS
Rated Pulling Force: 20,000 lbs. (9,072 kg.)
Drum Barrel Diameter: 5.75 in (146 mm)
Drum Flange Diameter: 12.25 in (311 mm)
Distance Between Flanges, Short Drum: 8.0 in (203 mm)
Distance Between Flanges, Long Drum: 14.0 in (356 mm)
Recommended Maximum Wire Rope Diameter: 9/16 in (14.3 mm)
Recommended Minimum Wire Rope Breaking Strength: 33,600 lb. (15,241 kg.)
Recommended Minimum Wire Rope Breaking Strength (PN 79220): 41,200 lb. (18,688 kg.)
Approximate Shipping Weight for 78970 & 78980: 297 lb (135 kg)
Approximate Shipping Weight for 79210 & 79220: 322 lb (146 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 2760 ft (841.2 m)
Mounting Bolt Torque: 159 ft*lbf (216 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 28.5:1
Brake Type: Spring Applied Disk
Contactor / Remote Type: N/A
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
ACCESSORIES (STANDARD DRUM)
Fairlead SRS-XL-STD: PN 77532
Wire Rope Assembly 9/16''x140' EIPS: PN 77451
Snatch Block XL-60K LB: PN 80858

ACCESSORIES (LONG DRUM)
Fairlead SRS-XL-LONG: PN 77869
Wire Rope Assembly 9/16''x245' EIPS: PN 77452
Snatch Block XL-60K LB: PN 80858

PERFORMANCE DATA BY LAYER (SHORT DRUM) - 9/16" (14.3 mm) dia. rope
Drum Line Load * Line Speed 15 GPM Line Speed 20 GPM Drum Capacity
Layer lbf kgf kN ft/min m/min ft/min m/min ft m
1 20000 9072 89.0 16.4 5.0 21.6 6.6 21 6.4
2 16975 7700 75.5 19.2 5.9 25.5 7.8 46 14.0
3 14745 6688 65.6 22.1 6.7 29.4 9.0 74 22.6
4 13032 5911 58.0 25.0 7.6 33.2 10.1 106 32.3
5 11676 5296 51.9 28.0 8.5 37.1 11.3 142 43.3

* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.


PERFORMANCE DATA BY LAYER (LONG DRUM) - 9/16" (14.3 mm) dia. rope
Drum Line Load * Line Speed 15 GPM Line Speed 20 GPM Drum Capacity
Layer lbf kgf kN ft/min m/min ft/min m/min ft m
1 20000 9072 89.0 16.4 5.0 21.6 6.6 36 11.0
2 16975 7700 75.5 19.2 5.9 25.5 7.8 79 24.1
3 14745 6688 65.6 22.1 6.7 29.4 9.0 129 39.3
4 13032 5911 58.0 25.0 7.6 33.2 10.1 185 56.4
5 11676 5296 51.9 28.0 8.5 37.1 11.3 248 75.6

* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.


FIRST LAYER PERFORMANCE
Line Load Pressure Drop at 15 GPM Pressure Drop at 20 GPM Duty Cycle
lbf kgf psi BAR psi BAR min/10min
0 0 865 59.6 1020 70.3 N/A
5000 2268 1050 72.4 1315 90.7 N/A
10000 4536 1490 102.7 1650 113.8 N/A
15000 6804 1880 129.6 2050 141.3 N/A
20000 9072 2280 157.2 2460 169.6 N/A
Series 20XL-LP 79210 Product Datasheet
