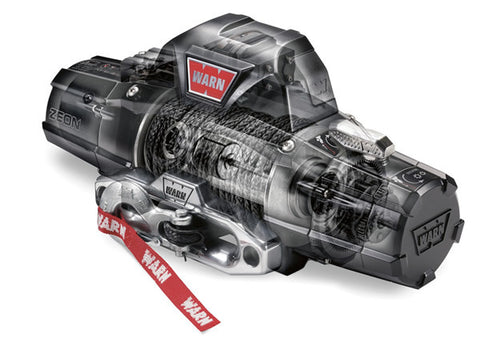

ZEON 8 S - Warn Winch - 8000 lb. w/Synthetic Rope

PART NUMBER 89305

$ 1,499.99

Don't let the good looks fool you. We've packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.

8,000 lb. (3630 kg) single-line pulling capacity
Includes 100' of 3/8" WARN Spydura synthetic rope, which includes a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a polished aluminum hawse fairlead.
Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
Backed by the WARN Limited Lifetime Warranty

*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

ZEON 8-S SPECS/PART NUMBER

Part number: 89305

Rated line pull: 8000 lbs. (3630 kg) single-line

Motor: 12V DC, series wound

Electrical controls: Contactor

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-stage planetary

Gear ratio: 162:1

Clutch (freespooling): Rotating ring gear

Brake: Automatic mechanical cone

Drum diameter/Length: 3.15"/9.0" (80mm/229mm)

Weight (kit shipping): 75 lbs. (34 kg)

Rope: 3/8" x 100' (9.5mm x 30.5m) Spydura synthetic

Fairlead: Hawse

Recommended Battery: 650 CCA minimum for winching

Battery leads: 25mm gauge, 72" (1.83m)

Finish: Satin-black powder coat

Warranty: Limited lifetime

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	35 (12.8)	63 amps	1/8000 (3629)
2000 (910)	17.2 (5.2)	167 amps	2/6777 (3074)
4000 (1810)	11.7 (3.6)	255 amps	3/5878 (2666)
6000 (2720)	8.5 (2.6)	335 amps	4/5189 (2353)
8000 (3630)	6.2 (1.9)	413 amps

Above performance specs are based on first layer of drum

Winch Dimensions:
Integrated configuration: 24.25" L x 7.15" D x 10.52" H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25" L x 7.15" D x 7.84" H
(615.9mm L x 181.6mm D x 199.02mm H)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

ZEON 8-S Operator's Manual

Synthetic Rope Installation Guide

ZEON 8-S Parts List
