Series 6 Hydraulic - Industrial Winch - 6000 lb.- Anti Clockwise Rotation

PART NUMBER 33445

  • $ 1,428.26

Call for Availability
1 (800) 374-8028


Winching Capacity of up to 6,000 lbs. (single line)

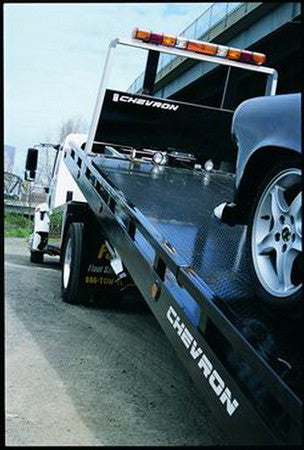

  • Popular winch for tow, utility and trailer applications
  • Hardened steel, two-stage planetary geartrain provides faster line speeds
  • Rugged dual-cone brake provides dependable control
  • Meets SAE J706 and CE standards
  • Wire rope, roller fairlead, and tensioner sold separately
PN 33445 (Anti-clockwise)
PN 33446 (Clockwise)
6 HYD SPECS/PART NUMBERS
Part Number: 33445 (Anti-clockwise)
Part Number: 33446 (Clockwise)
Rated Pulling Force: 6000 lbf (2722 kgf)
Drum Barrel Diameter: 2.50 in (64 mm)
Drum Flange Diameter: 6.00 in (152 mm)
Distance Between Flanges: 8.9 in (226 mm)
Recommended Maximum Wire Rope Diameter: 5/16 in (7.9 mm)
Recommended Minimum Wire Rope Breaking Strength: 10540 lbf (4781 kgf)
Approximate Shipping Weight: 41.5 lb (18.8 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 300 ft (91 m)
Mounting Bolt Torque: 20-25 ft*lbf (27-34 N*m)
Maximum Layers of Wire Rope: 4 (with 5/16" dia. rope)
Gear Reduction: 26:1
Brake Type: Automatic Double Cone
Contactor / Remote Type: N/A
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
ACCESSORIES
Wire Rope Tension Plate Series 6: PN 34373
Fairlead Chrome 10'': PN 30860
Fairlead Black 10'': PN 24335
Wire Rope Assembly 5/16''x100' EIPS: PN 24900

PERFORMANCE DATA BY LAYER - 5/16" (8 mm) dia. rope
Drum Line Load * Line Speed 10 GPM Line Speed 15 GPM Drum Capacity
Layer lbf kgf kN ft/min m/min ft/min m/min ft m
1 6000 2722 26.7 22.2 6.8 32.0 9.8 18 5.5
2 4909 2227 21.8 27.2 8.3 39.1 11.9 41 12.5
3 4153 1884 18.5 32.1 9.8 46.2 14.1 68 20.7
4 3600 1633 16.0 37.0 11.3 53.3 16.2 99 30.2

* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.


FIRST LAYER PERFORMANCE
Line Load Pressure Drop at 10 GPM Pressure Drop at 15 GPM Duty Cycle
lbf kgf psi BAR psi BAR min/10min
0 0 206 14.2 343 23.6 N/A
1000 454 378 26.1 553 38.1 N/A
2000 907 618 42.6 777 53.6 N/A
3000 1361 938 64.7 1013 69.8 N/A
4000 1814 1090 75.2 1222 84.3 N/A
5000 2268 1360 93.8 1522 104.9 N/A
6000 2722 1680 115.8 1693 116.7 N/A





Series 6 HYD (Anti-clockwise) Product Datasheet
